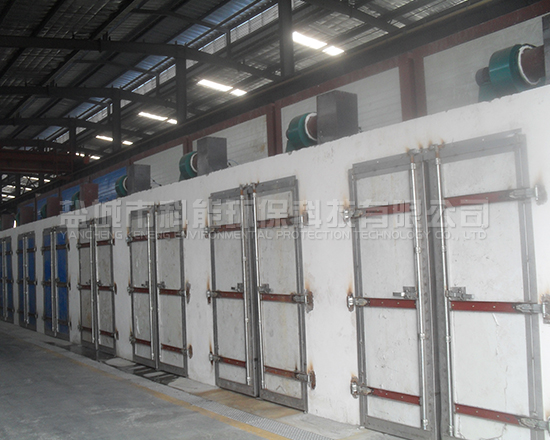

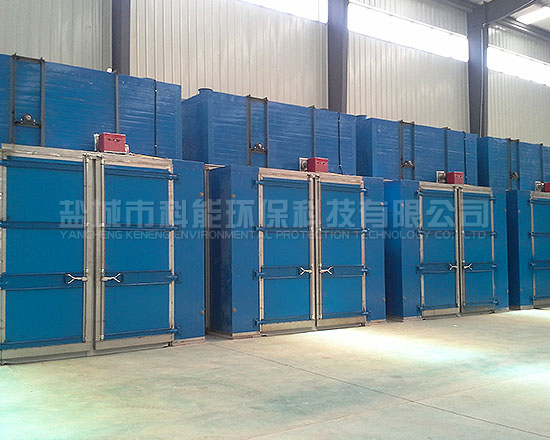

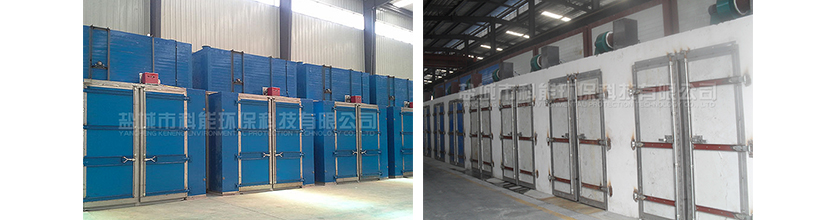

全自动固化室

KN-GHS型固化干燥室

简介：

KN-GHS型全自动固化干燥室用于蓄电池生产中极板的干燥与固化。

此设备可以自动完成极板固化干燥全过程，可根据要求选择电、煤气、天然气等加热方式，满足所需的温度和湿度。

The automatic curing and drying chamber is used for drying ang curing the plates for battery production.This equipment will finish the complete plate curing and drying process automatically,the heating method of electricity,coal gas,and natural  gas can be selected for meeting different of temperature and humidity.

KN-GHS  curing&drying chamber

Introduce:

This chamber is used to plate drying and solidification in battery manufocture.

The equipment can automatically finish the whole pracess of plate solidification and drying.

技术参数：                                Technical Parameters

外形尺寸：                                External Dimension

主箱体：4000mm×4000mm×3000mm       Main Chamber: 4000mm×4000mm×3000mm

有效容积：3200mm×3800mm×2900mm     Valid Volume: 3200mm×3800mm×2900mm

控制精度                                 Control Precision

温度：±1℃ 湿度：±2%RH                Temperature: ±1℃;Humidity: ±2%RH

加热方式：电加热和蒸汽加热               Heating Method:Electrical heating and steam heating

加湿方式：喷水雾和加蒸汽或用加湿机       Humidifying Method:Electrical heating and steam heating

电源：3相380伏50赫兹                  Electrical Power:3Phases,380V,50HZ

功率：电加热60-120KW 风机：7.5KW        Power:electrical heating=60~120KW,Blower=7.5KW

蒸汽辅助加湿：30KW                      Steam heating=30KW

水：0.2Mpa~0.4 Mpa                       Water: 0.2Mpa~0.4 Mpa

压缩空气：0.4Mpa~0.6Mpa                  Compressed Air: 0.4Mpa~0.6Mpa

蒸汽：≥0.05Mpa                          Steam: ≥0.05Mpa

注：可根据要求选择加热方式和加湿方式  Note:Different heating method ang hunidifying method can be selected.
